Chain Diameter: | |
---|---|
Chain shortner: | |
Lifting Hook: | |
Availability: | |
Quantity: | |
ZS0802
Gostern Rigging
ZS080204

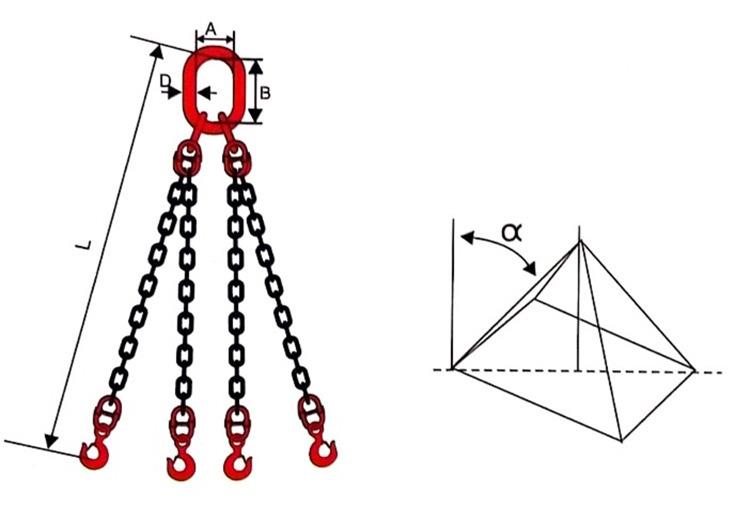

Four Leg Chain Sling
Model |
Chain Dia. |
WLL(T) |
Master Link Assembly |
Connecting Link |
Weight of Chain |
|
α≤45° |
45°<α≤60° |
|||||
ZS080204-6 |
6 |
2.352 |
1.68 |
3 |
1.2 |
0.79 |
ZS080204-8 |
8 |
4.2 |
3 |
4.7 |
2 |
1.38 |
ZS080204-10 |
10 |
6.615 |
4.725 |
8 |
3.15 |
2.2 |
ZS080204-13 |
13 |
11.13 |
7.95 |
16 |
5.3 |
3.8 |
ZS080204-16 |
16 |
16.8 |
12 |
21.7 |
8 |
5.7 |
ZS080204-20 |
20 |
26.25 |
18.75 |
28.4 |
12.5 |
9 |
ZS080204-22 |
22 |
31.5 |
22.5 |
35 |
15 |
10.5 |
ZS080204-26 |
26 |
44.52 |
31.8 |
45 |
21.2 |
15.2 |
ZS080204-32 |
32 |
66.15 |
47.25 |
70 |
31.5 |
23 |
*Regarding the precautions for the three-leg chain sling and four-leg chain sling, the suspension points should be evenly distributed at the center of gravity level of the lifted object, and above the center of gravity of the lifted object. It is necessary to pay attention to the lifting angle (α), the larger the lifting angle, the smaller the lifting capacity. A lifting angle exceeding 60° is not allowed!
